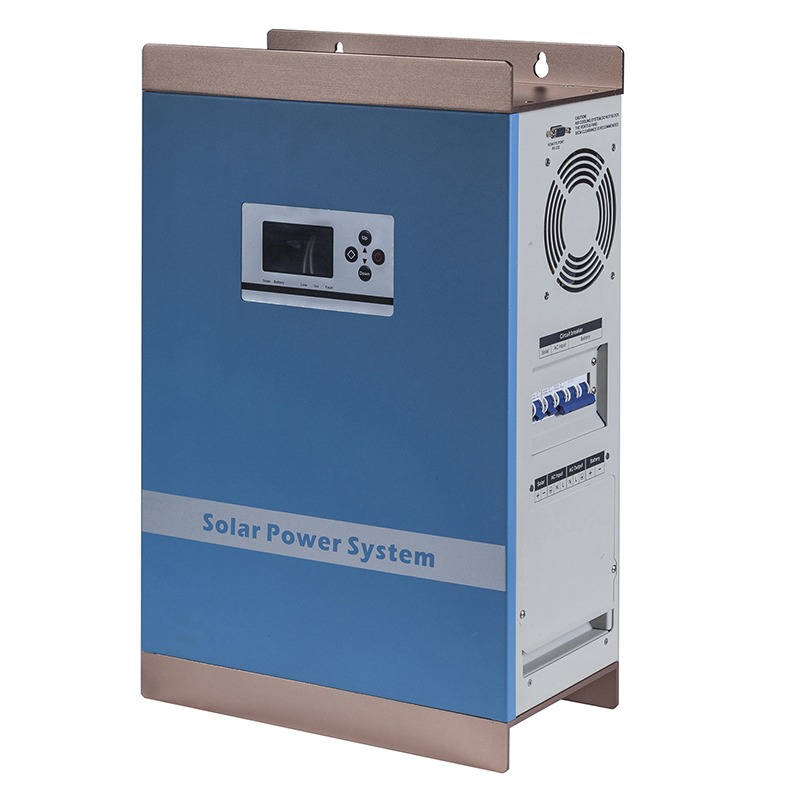

| Model: PWM Hybrid Inverter Built In Solar Controller | 0.3-1KW | 1.5-6KW | ||||
| Power Rating(W) | 300 | 700 | 1500 | 3000 | 5000 | |
| 500 | 1000 | 2000 | 4000 | 6000 | ||
| Battery | Rated Voltage(VDC) | 12/24 | 12/24/48 | 24/48 | 48 | |
| Charge Current | 10A MAX | 30A MAX | ||||
| Bettery Type | Can be set | |||||
| Input | Voltage Range | 85-138VAC/170-275VAC | ||||
| Frequency | 45-65HZ | |||||
| Output | Voltage Range | 110VAC/220VAC;±5%(Inverter Mode) | ||||
| Frequency | 50/60HZ±1%(Inverter Mode) | |||||
| Output Wave | Pure Sine Wave | |||||
| Charge Time | ＜10ms(Typical Load) | |||||
| Frequency | ＞85%(80% Resistive Load) | |||||
| Overcharge | 110-120%/30S;＞160%/300ms | |||||
| Protection Function | Battery over-voltage and low-voltage protection, overload protection, short circuit protection, over-temperature protection | |||||
| MPPT Solar Controller | PWM Voltage Range | 12VDC:12V~25VDC; 24VDC:25V~50VDC; 48VDC:50V~100VDC | ||||
| Solar Input Power | 12VDC-40A(480W); 24VDC-40A(1000W) | 12VDC-60A(800W); 24VDC-60A(1600W); 48VDC-60A(3200W) | ||||
| Rated Charge Current | 40A(Max) | 60A(Max) | ||||
| MPPT Efficiency | ≥85% | |||||
| Average Charging Voltage (Lead Acid Battery) Accept | 12V/14.2VDC; 24V/28.4VDC; 48V/56.8VDC | |||||
| Floating Charge Voltage | 12V/13.75VDC; 24V/27.5VDC;48V/55VDC | |||||
| Operating Ambient Temperature | -15-+50℃ | |||||
| Storage Ambient Temperature | -20- +50℃ | |||||
| Operating / Storage Environment | 0-90% No Condensation | |||||
| Dimensions: W* D # H (mm) | 290*125*430 | 350*175*550 | ||||
| Packing size: W* D * H (mm) | 365*205*473 | 445*245*650 | ||||
